Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape

Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape

Brandbestendige XLPE-ronde draadkabel

Aangepaste XLPE-elektrische draad

UL-gecertificeerde ronde draadkabel

Certificering:

ISO9001, CCC, RoHS, TUV UL

Neem contact met ons op
Vraag een offerte
Productdetails
Model nr.:
xlpe kabel
Leidermateriaal:
koperen
Materiaal van de omhulsel:
PVC
Isolatie materiaal:
xlpe
Materiaalvorm:
Ronde draad
Waaier van Toepassing:
Vlamvertrager
Merken:
LK
bedrijf:
Vervaardiging
Gewoon:
Gewoon
Jacket 1:
siliconen
Brandkwaliteit:
Brandweerstand
Pakket:
Rollen
Diameter:
25 mm
Diameter1:
35 mm
Diameter2:
50 mm
Diameter 3:
75 mm
Transportpakket:
Verpakking
Specificatie:
50 x 55 x 60 cm
Handelsmerk:
LK
Oorsprong:
China
Hs-code:
854449290
Levering vermogen:
5000 stuks per dag
Pakketgrootte:
850.00cm * 850.00cm * 580.00cm
Bruto gewicht van het pakket:
210.000kg
Type:
Geïsoleerd
Type geleider:
Stranded
Toepassing:
Overhead, verwarming, ondergronds, nieuwe energie
Monsters:
US$100/stuk 1 stuk.
Aanpassing:
Beschikbaar Gepersonaliseerd verzoek
Verzendkosten:
over de verzendkosten en de geschatte levertijd.
 :
Aanvankelijke betaling Volledige betaling
Monetaire waarde:
US$
Teruggave en restitutie:
U kunt tot 30 dagen na ontvangst van de producten een terugbetaling aanvragen.
Markeren:

Brandbestendige XLPE-ronde draadkabel

,

Aangepaste XLPE-elektrische draad

,

UL-gecertificeerde ronde draadkabel

Betaling & het Verschepen Termijnen
Productomschrijving

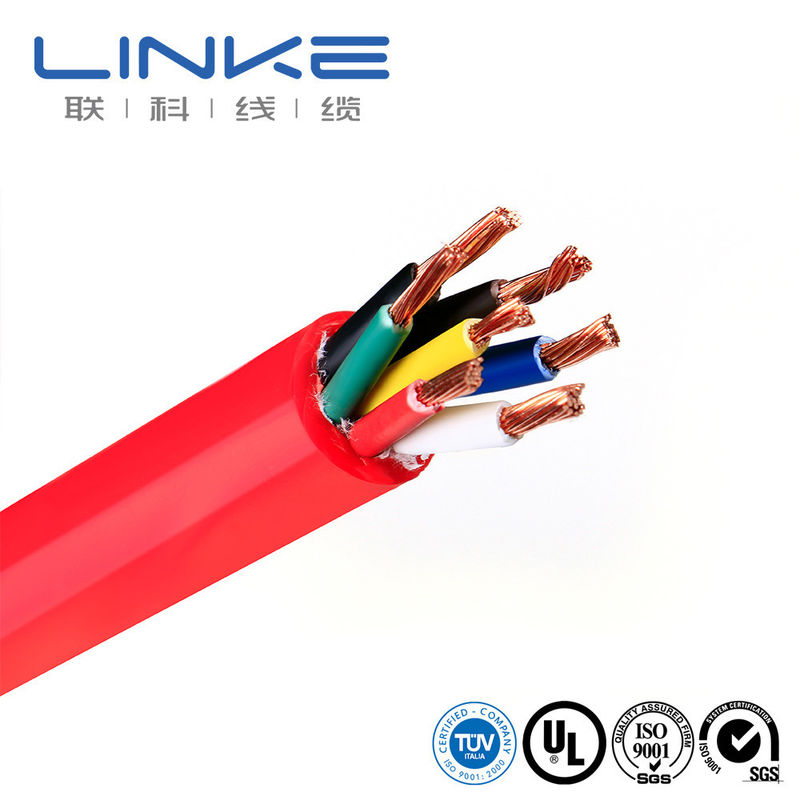

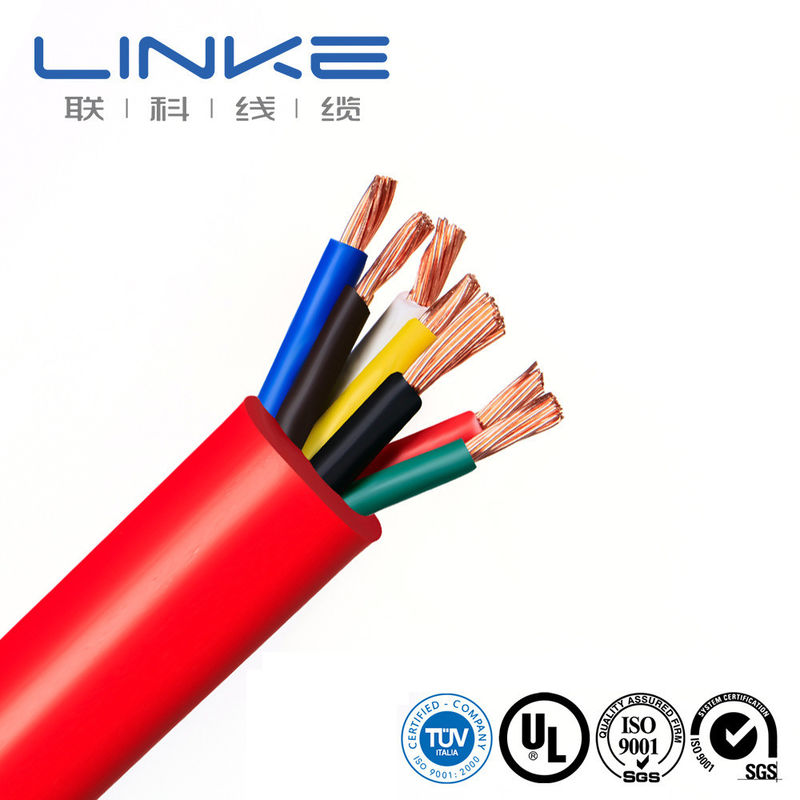

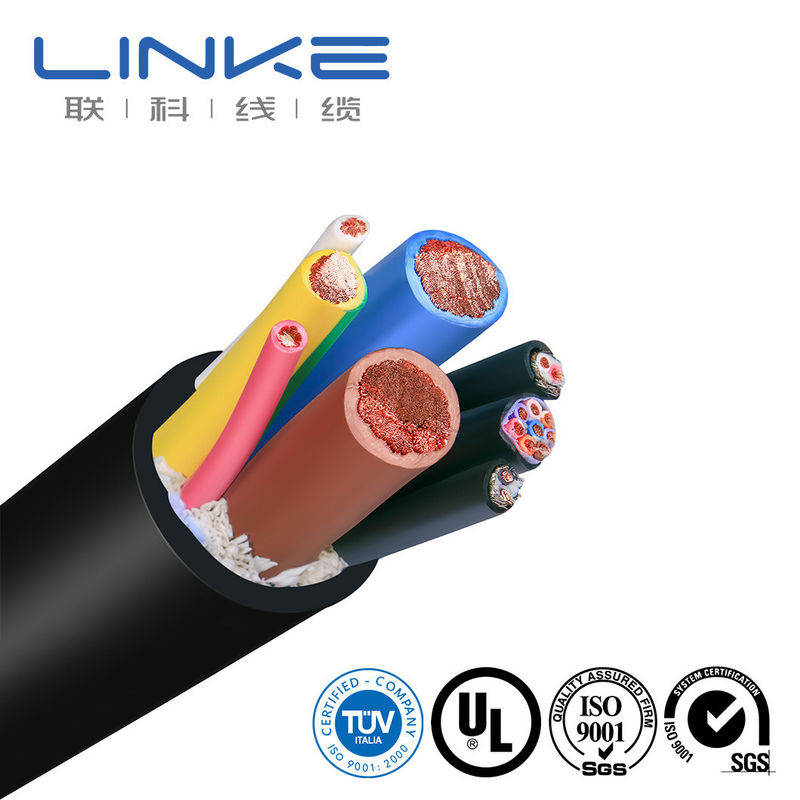

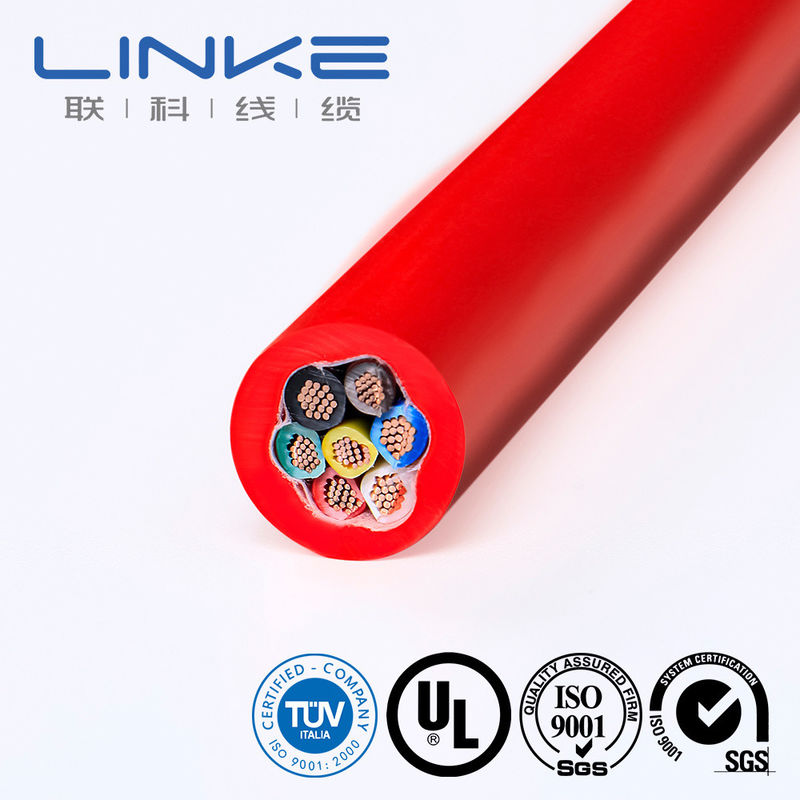

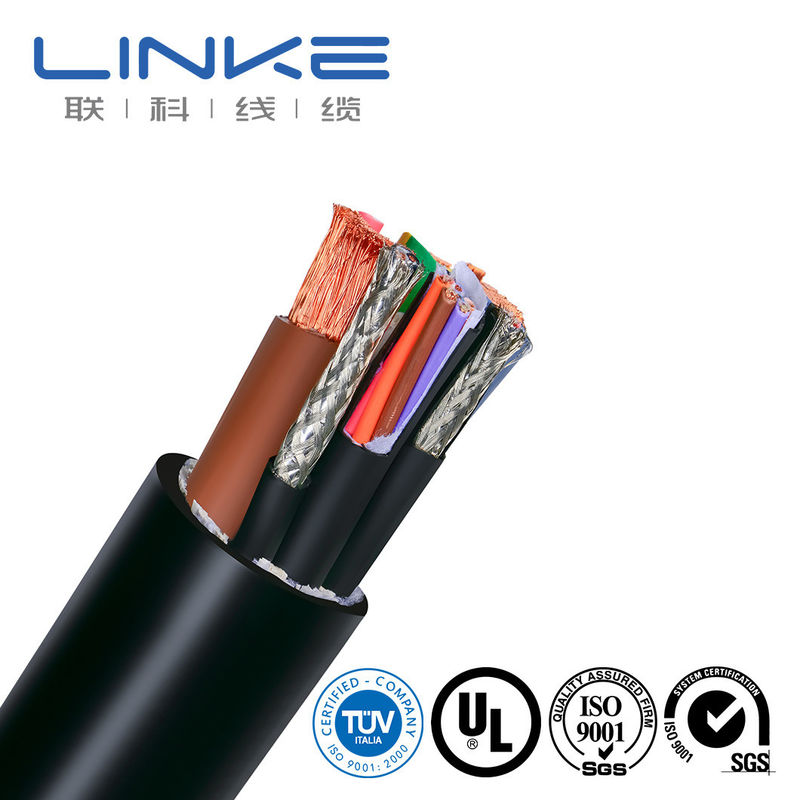

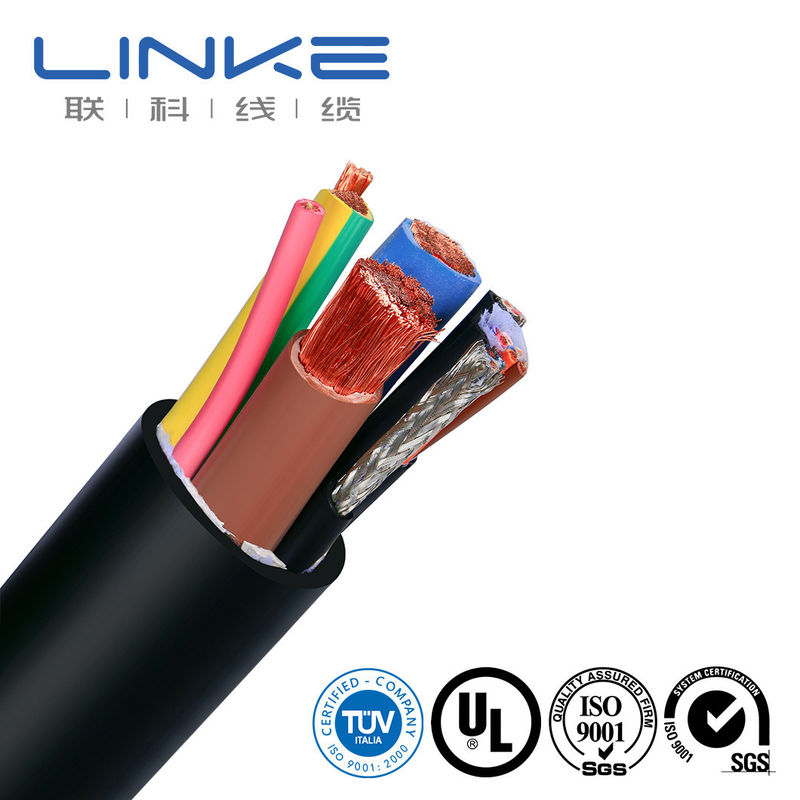

Fire Resistant XLPE Wire Cable
Fire-resistant cable refers to the cable that can maintain a certain period of safe operation in the case of flame combustion. Fire-resistant cables are widely used in high-rise buildings, underground railways, underground streets, large power stations and important industrial and mining enterprises and other places related to fire safety and fire rescue, such as fire equipment and emergency lighting and other emergency facilities power supply lines and control lines.




No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm Insul.
Thick. (mm)
Current Aarring Capacity (A)
1X1.5 30/0.25 1.6  4.9  30.00
1X2.5 50/0.256 2.1  5.5  41.00
1X4.0 56/0.3 2.6  6.2  55.00
1X6.0 84/0.3 3.2  7.2  70.00
1X10 142/0.3 4.0  9.1  98.00
1X16 228/0.3 5.7  10.2  132.00
1X25 361/0.3 6.8  12.0  176.00
1X35 494/0.3 8.8  13.8  218.00
1X50 418/0.39 10.0  16.0  280.00
3X70 589/0.39 11.8  18.4  350.00
3X95 798/0.39 13.8  21.3  410.00


Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and  improve the quality of one's life.
Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
Fire Resistant XLPE Wire Cable
ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

FAQ



1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
